Fit for children
The wearable structure follows children’s proportions and movement, with adjustment to support fitting.
C SERIESOverview
C Series Children’srehabilitation
Children’s lower-limb exoskeleton
Compliant joints and wearable support for children’s walking practice.
Children’s rehabilitation
Walking practice
designed around children.

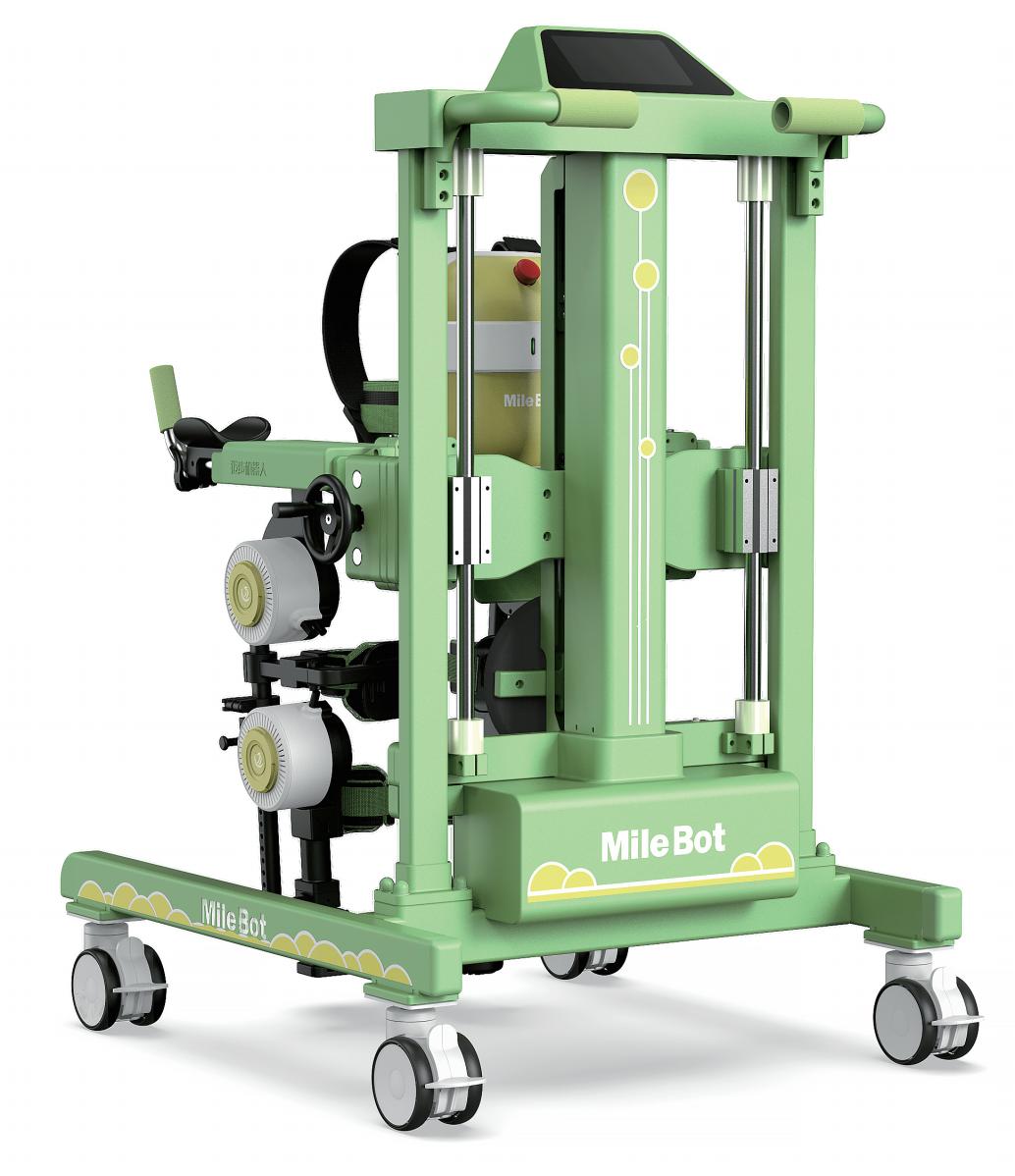

C Series brings together a wearable structure designed for children, powered hip and knee joints and several training modes for children with lower-limb walking difficulties. Sessions are arranged with professional support.
Contact with the ground

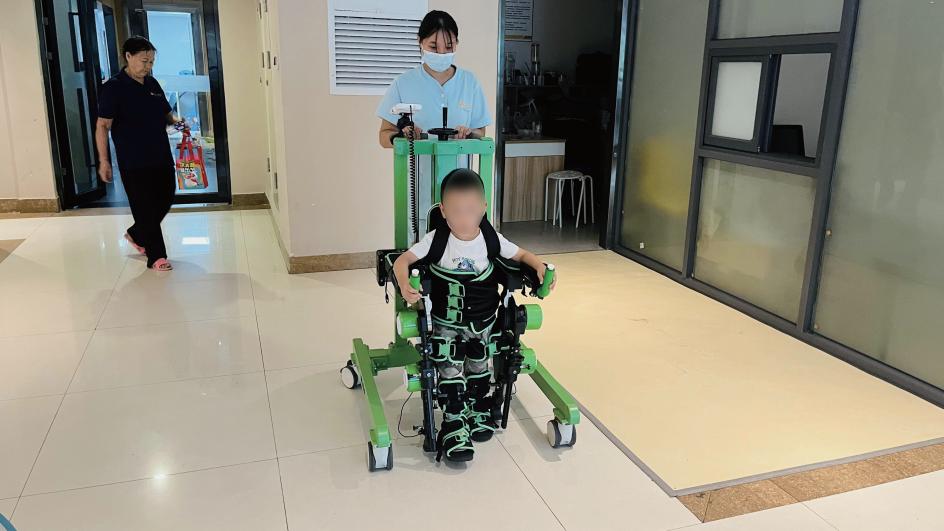

Walking practice brings the feet into contact with the ground, linking the movement of stepping with contact in a real setting.
Drive and support
Compliant joints.
Support through each step.
Powered joints at both hips and knees assist lower-limb movement. Compliant drive mechanisms provide low-impedance interaction and absorb impact, working with motion intent sensing to assist movement.
Four powered joints
The hip and knee joints on each side work with supports around the pelvis, legs and feet.
Motion intent sensing
Movement sensing helps the system recognise the user’s participation and provide powered assistance.
Training modes
Active and passive.
Six ways to practise.
Six modes cover continuous walking, stepping in place, individual steps and leg swings. Active modes involve the child’s own movement; passive modes guide repeated movements. A professional selects the mode for the session.
Continuous walking · Active
The child participates in a continuous walking sequence with device assistance.
Continuous walking · Passive
The device guides the legs through a repeated walking sequence.
Continuous stepping · Active
The child actively participates in alternating steps in place.
Continuous stepping · Passive
The device guides repeated alternating steps in place.
Single-step walking · Passive
The device guides an individual walking step.
Leg-swing training · Passive
The device guides repeated leg-swing movements.
Fit and safeguards
Support, fit and control
throughout the session.
Children’s rehabilitation involves both movement assistance and a secure fit. C Series combines wearable supports, mechanical locks and emergency stopping within the device.
Wearable supports
Supports around the waist, legs and feet are adjusted around the child’s body.
Safety locks
Safety locks secure adjustable positions and supporting structures.
Emergency stop
A dedicated emergency stop button is available during training.
C SERIES
Specifications
Please refer to the product manual for specifications and instructions for your model.
- Product name
- Gait training equipment
(Children’s lower-limb exoskeleton robot) - Models
- CXO-C1, CXO-C2, CXO-C3
- Powered joints
- Bilateral hip and knee joints
- Training modes
- Continuous walking — active; Continuous walking — passive; Continuous stepping — active; Continuous stepping — passive; Single-step walking — passive; Leg-swing training — passive
- Maximum user weight
- ≤60 kg
- User height
- 90–150 cm
C Series
Find the configuration
for your setting.
Tell our team about your setting, fitting needs and training programme to discuss product information and a demonstration.
